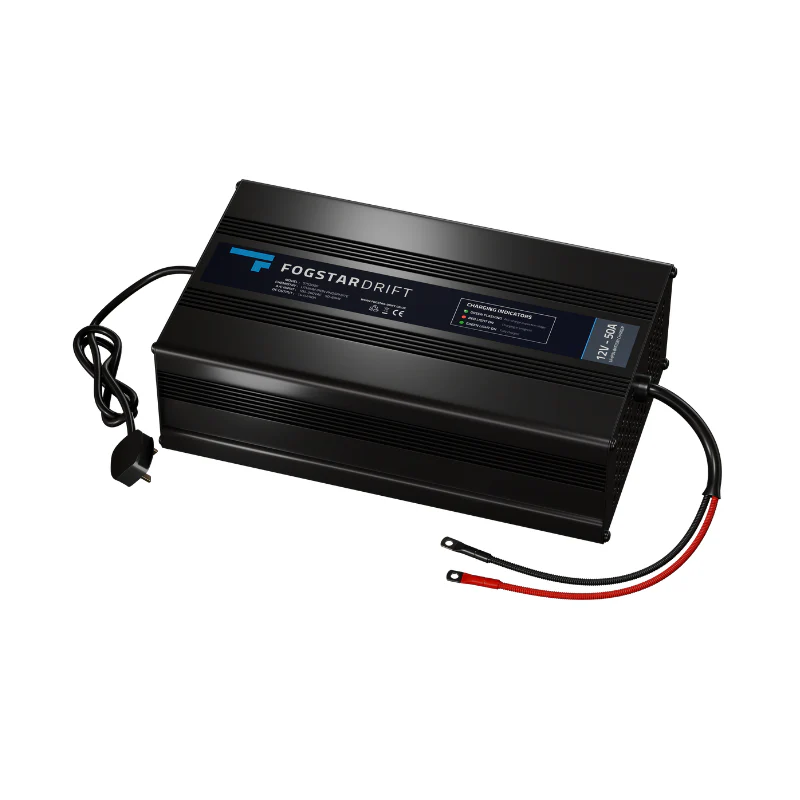

Fogstar 12V 50A -LiFePO4 Charger

These chargers have been designed by Fogstar specifically to work with our Fogstar Drift LiFePO4 batteries, in particular our 230Ah, 300Ah and 460Ah 12V Drift Leisure Batteries.

These V3.0 Chargers now include a temperature-controlled fan that intelligently activates and deactivates when required, ensuring optimal conditions and significantly quieter performance.

Our user-friendly 12V 50A LiFePO4 charger is packed with extensive protective features, and are of a high seismic grade, ideal for use during off-grid adventures.

PRODUCT SPECIFICATIONS

Working Temperature     -30°c ~ +40°c
Storage Temperature       -40°c ~ +70°c
Relative Humidity            5% ~ 95%
Heat Dissipation Mode    Fan Cooling
Input Voltage                   180-260 VAC
Input Frequency               50Hz / 60 Hz
Chemistry                          LiFePO4
DC Output                         14.2V / 50A
Ring connector size          M10 (will fit M8 using a washer)

HOW TO CONNECT YOUR CHARGER

1. Remove your charger from the packaging
2. Retain your packaging
3. Ensure the charger air vents are not blocked before connecting
4. Connect the black (negative -) cable to the black (negative -) terminal on the battery
5. Connect the red (positive +) cable to the red (positive +) terminal on the battery
6. Ensure terminal rings are tightened
7. Plug your battery into the mains and switch ON
8. Your battery indicator light should be flashing green (pre-charge inspection stage).

HEALTH AND SAFETY

• Do not disassemble the charger
• Do not remove the charger cover
• Do not block the charger air vent
• Keep away from heat source
• Keep away from water
• Do not crush, incinerate or modify
• Only use within manufacturers specifications.
