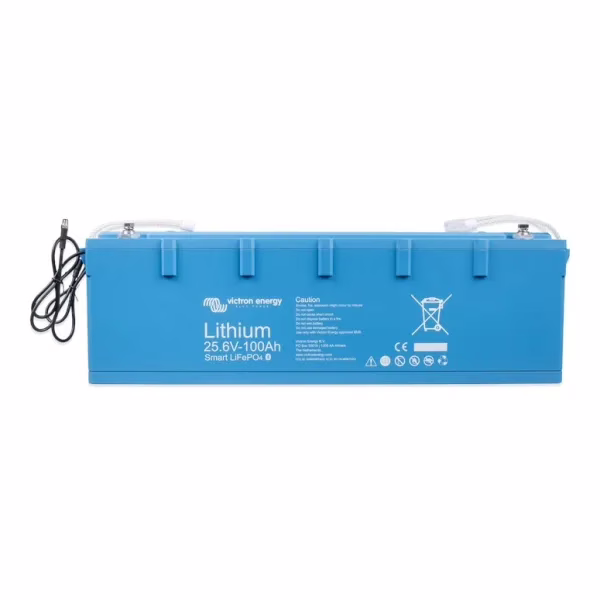

Victron Energy LiFePO4 Battery 25.6V 100Ah Smart

Lithium-iron-phosphate (LiFePO4 or LFP) is the safest of the mainstream li-ion battery types. The nominal voltage of a LFP cell is 3,2V (lead-acid: 2V/cell). A 12,8V LFP battery therefore consists of 4 cells connected in series; and a 25,6V battery consists of 8 cells connected in series.

Features

Rugged
A lead-acid battery will fail prematurely due to sulfation:

• • If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).



• • If it is left partially charged or worse, fully discharged (yacht or mobile home during wintertime).



A LFP battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of LFP compared to lead-acid. Other advantages are the wide operating temperature range, excellent cycling performance, low internal resistance and high efficiency (see below).

LFP is therefore the chemistry of choice for demanding applications.

Efficient
In several applications (especially off-grid solar and/or wind), energy efficiency can be of crucial importance.

The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average leadacid battery is 80%.

The round-trip energy efficiency of a LFP battery is 92%.

The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy is required (battery operating in 70% to 100% charged state). In contrast, a LFP battery will still achieve 90% efficiency under shallow discharge conditions.

Size and weight
Saves up to 70% in space Saves up to 70% in weight

Expensive?
LFP batteries are expensive when compared to lead-acid. But in demanding applications, the high initial cost will be more than compensated by longer service life, superior reliability and excellent efficiency.

Bluetooth
With Bluetooth cell voltages, temperature and alarm status can be monitored. Very useful to localize a (potential) problem, such as cell imbalance.

BMS
Our LFP batteries have integrated cell balancing and cell monitoring. Up to 5 batteries can be paralleled and up to four 12V batteries or two 24V batteries can be series connected, so that a 48V battery bank of up to 1500Ah can be assembled. The cell balancing/monitoring cables can be daisy-chained and must be connected to a Battery Management System (BMS).

GTIN	8719076054627
Voltage	25.6V
Battery Capacity (C20)	100Ah
Terminal Type	M8
Terminal Layout	Left Hand Positive
Dimensions (Including Terminals)	H197 x W650 x D163mm
Weight	28Kg
Warranty	3 Years
Country of Manufacture	China
Battery Technology	Lithium
Battery Application	Deep Cycle
