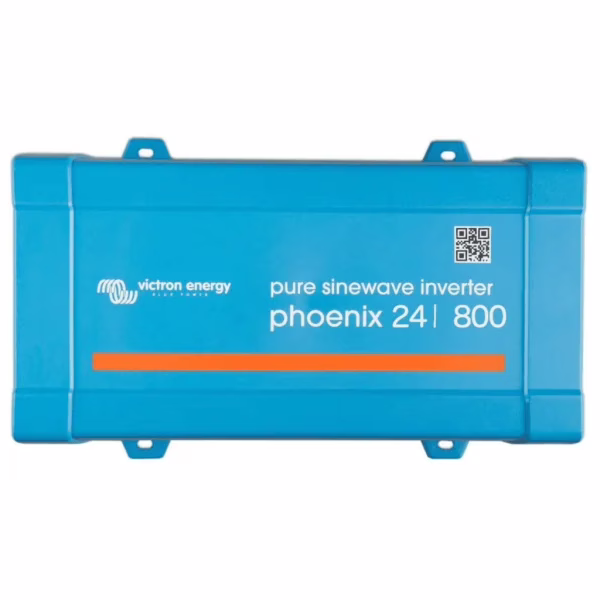

Victron Phoenix Inverter VE.Direct 24/800

Victron Phoenix Inverter VE.Direct 24/800. (PIN241800400)

Victron Energy Victron Phoenix Inverter VE.Direct 24/800. Inverters allow you to power domestic equipment – requiring 230V/120V AC – using ‘leisure’ or ‘automotive’ batteries rated at 12V, 24V or 48V DC.

VE.Direct communication port

The VE.Direct port can be connected to:

– A computer (VE.Direct to USB interface cable needed)
– Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)

Fully configurable

– Low battery voltage alarm trip and reset levels
– Low battery voltage cut-off and restart levels
– Dynamic cut-off: load dependent cut-off level
– Output voltage 210 – 245V
– Frequency 50 Hz or 60 Hz
– ECO mode on/off and ECO mode sense level

Monitoring

– In- and output voltage, % load and alarms

Proven reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years.  The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.  High start-up power Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote on/off

A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.

LED diagnosis

Please see manual for a description. To transfer the load to another AC source: the automatic transfer switch For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.



Weight	6.8 kg
Dimensions	20 × 35 × 28 cm
Voltage	24V
Inverter Rating	800VA
